Energy wood grapple for a timber crane
Features:
- Cutting capacity: 180 mm

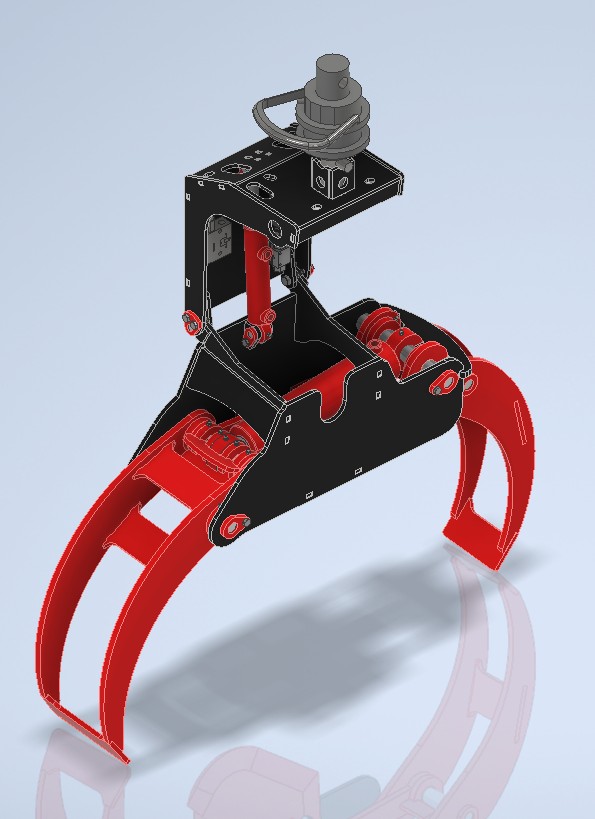

- Jaw opening: 1080 mm
- Versatility: The removable blade allows it to also be used as a loading grapple
- Material: Optimized structure (Hardox steel) guarantees durability and cost-effectiveness.
- Material thicknesses 8–15 mm.
- Weight: Approx. 144 kg

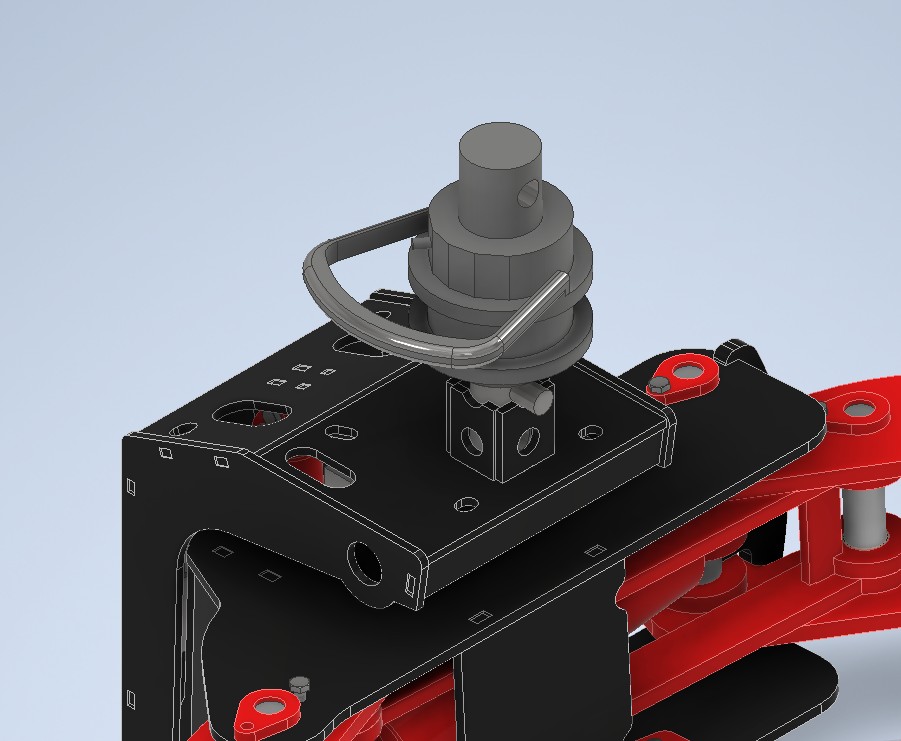

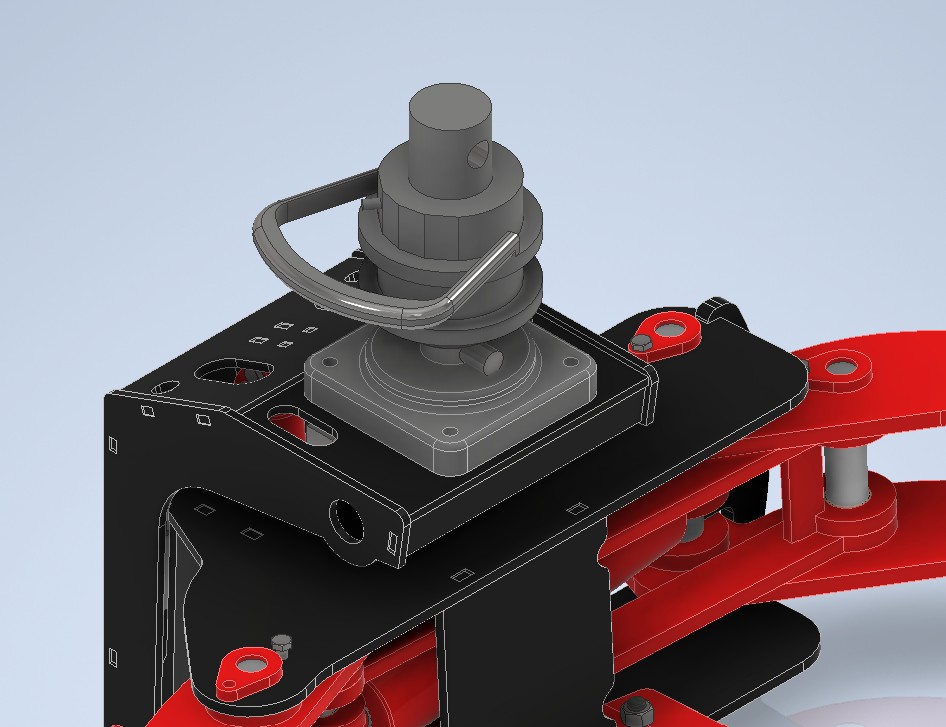

- Rotator attachment: D49.5mm pin, 140x140mm or 150x150mm flange mounting
- Easy assembly: Readily available shaft steel is suitable as pin material, and making the pins does not require a lathe. This also applies to other DDinno products.

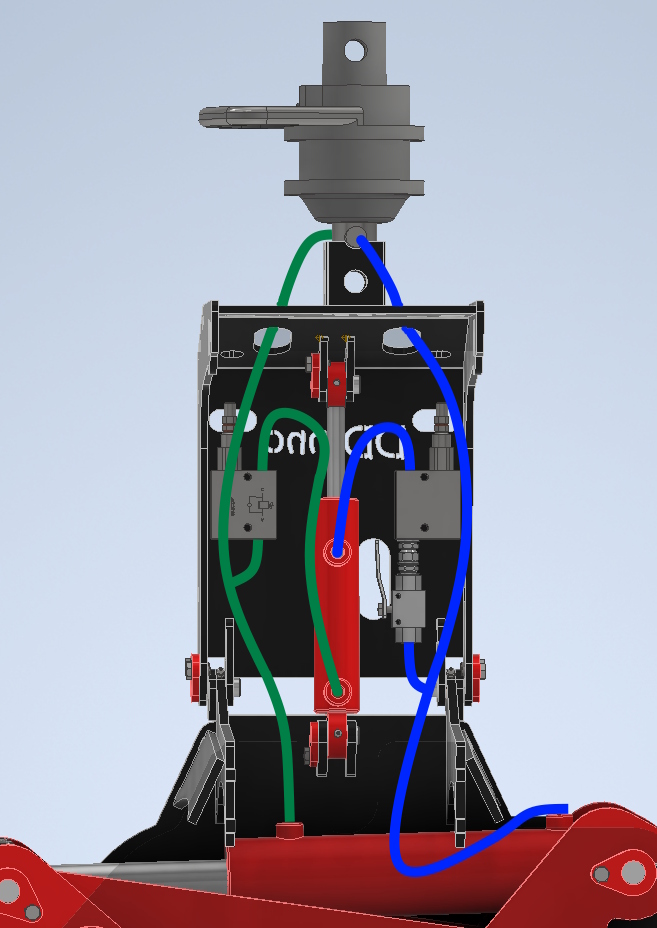

- Hydraulic pressure: max 250 bar
General information regarding DDinno DIY assembly kits—such as assembly, tool requirements, support, ordering, and safety—can be found here:
For the buyer of an assembly kit
PRICE LIST (hyperlink)
PICTURES AND VIDEOS FROM ASSEMBLY
MANUFACTURING DOCUMENTS:
Manufacturing instructions
The shopping cart on the website is not operational. However, you can submit an order through the website so that the required order details are logged. Ordering requires discussion and clarification. WhatsApp messages have proven to be the best and fastest method.
