First operational tests 07/2025

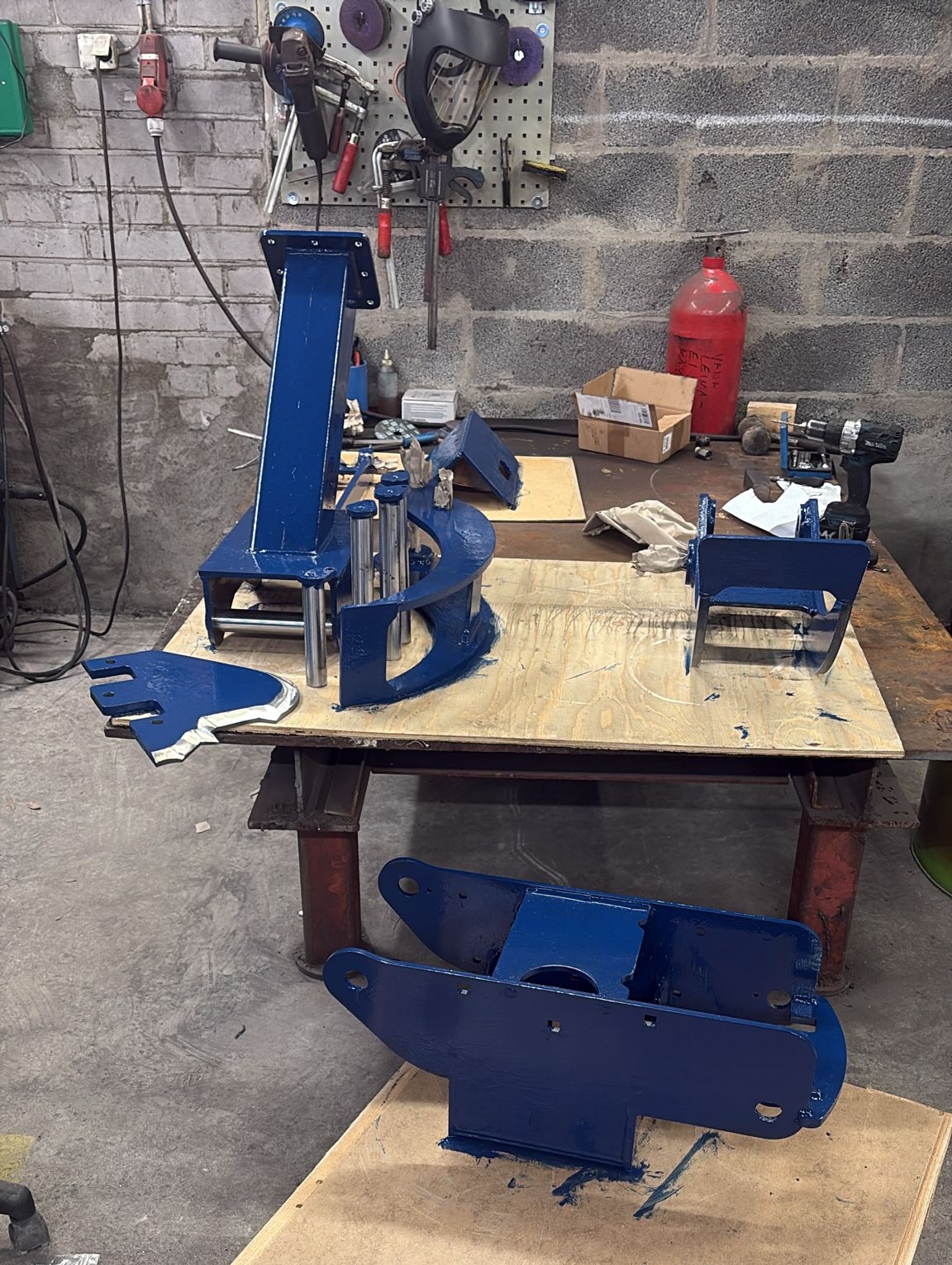

DDinnoAK180 BUILDING KIT
Build a cost-effective and durable grapple yourself!
The DDinnoAK180 assembly kit provides the market's most cost-effective solution for acquiring your own energy wood grapple. This page focuses on product-specific information.
General information regarding DDinno DIY assembly kits—such as assembly, tool requirements, support, ordering, and safety—can be found here:
For the buyer of an assembly kit:
Features of the DDinnoAK180
- Grapple
Excavator size: For 1.5–10 tonne excavators
- Cutting capacity: 180 mm
- Cutting jaw opening: 1080 mm
- Versatility: The removable blade allows it to also be used as a loadig grapple (depending on the extension boom implementation)
- Material: Optimized structure (Hardox and S355 steel) guarantees durability and cost-effectiveness. Material thicknesses 10–15 mm.
- Extension boom: The builder specifies the length of the extension boom.
- Weight: Approximately 145 +/-10 kg (depending on the quick coupler/bracket and extension boom dimensions)
- Brackets/Couplers: Available with S-type quick couplers.
- Easy assembly:
- Hydraulic pressure: max 250 bar
Features of the DDinnoAK180 Accumulator / Collector
PRICE LIST (hyperlink)
Total estimated cost of the grapple (0% VAT):
- Laser cuts: approx. €500
- Hydraulic cylinder: €143 (July 5, 2025) (incl. -27% DDinno discount)
- Hydraulic hoses and fittings: estimated €50
- Axle pins: approx. €40 (does not include coupler pins)
- Slide bearings: approx. €25
- Screws and nuts: estimated €20
- …
Total: €850–900 0% VAT + price of the DESIGN KIT.
MANUFACTURING DOCUMENTS:
Grapple:
Collector:
DD innovations Oy All rights reserved.
The shopping cart on the website is not operational. However, you can submit an order through the website so that the required order details are logged. Ordering requires discussion and clarification. WhatsApp messages have proven to be the best and fastest method.
